PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature

PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature

  • PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature
  • PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature
  • PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature
  • PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature
PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature
Product Details:
Place of Origin: Jiangsu, China
Brand Name: FOFIA
Payment & Shipping Terms:
Price: $300/units 1-49 units
Contact Now
Detailed Product Description
Frequency: 134.2 KHz, 125 KHz, 134.2KHz Network: 4 G, 5 G, Wifi, Bluetooth
Operation System: Windows 10, Ios, Android 9.0, Windows 7 Protocol: ISO 11784
Reading Distance: 8-20cm Customized Support: Customized Logo, OEM, ODM
Material: PVC Support Card: Smart Cards, HID ICLASS, Proximity Cards, Magnetic Stripe Cards
Product Name: Eartag Cattle RFID Reader Reading Distance: 45cm
Application: RFID Ear Tag Reading Read Standard: FDX-B
Color: Black Communication Port: RS232
MOQ: 1PCS OEM: Welcome
Manufacturer: FOFIA
Highlight:

PVC cattle RFID ear tag reader

,

1342khz FDXB RFID reader

,

middle range distance ear tag reader



Product Description

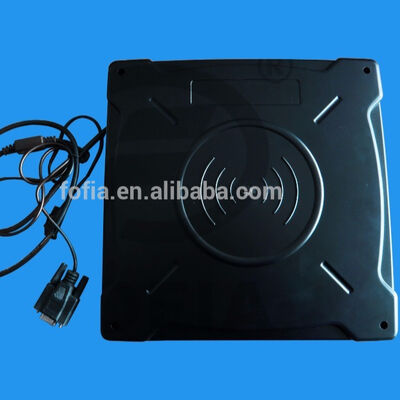

RLF02A is a 134.2KHz RFID long-distance reader which is specially designed for reading the animal ID tags with ISO11784/ISO11785 Standard. After reading the tag, it can directly output the information to the PC by format of RS232. It is usually used at the livestocks passages and enclosures to do the work like automatic feeding, weighing, milking, butchering and to do the automatic identification about the tags during the breeding process.



1. Specifications:

ModelRLF102A

Dimensions  260length*260height*35thicknessm/m

Operating Frequency  AM 134.2 KHz



2. Technical Parameter:

Operating voltage: Vcc=12V

Electric current:   360mA  (12V)



3. Specifications:



PIN

NAME

I/O

SYMBLE

MIN

TYP

MAX

DESCRIOTION

Red

VCC

I

VCC

10.5V

12V

13.5V

Power

Black

GND

I

VSS

-

-

-

Power

Yellow

PROGRAM1

I

Vi-H

Vi-L

Vcc-0.2V

-

Vcc

GND

Vcc+0.2V

Vss+0.2V

Select mode

Purple

PROGRAM2

I

Vi-H

Vi-L

Vcc-0.2V

-

Vcc

GND

Vcc+0.2V

Vss+0.2V

Select mode

Grey

-

-

-

-

-

-

-

Green

-

-

-

-

-

-

-

Brown

-

-

-

-

-

-

-

White

-

-

-

-

-

-

-

Blue

RS232

O



±5V

±8V

RS232 output

Orange

For Customer

I

Vi-H

Vi-L

Vcc-0.2V

-

Vcc

GND

Vcc+0.2V

Vss+0.2V

Connected GND to light blue LED

 PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature 0



Packaging & Shipping









Our Services

Wuxi Fofia Technology Co., Ltd will develop into a company that can provide complete solutions including IC card, equipment, application software and system integration. We’re committed to the development and promotion of animal identification technology. We’ll win customers’ trust with our high-quality products and first-class service. We warmly welcome the direct users of food safety source-tracing project implementation and system integrators to cooperate with us. We’ll try our best to provide the best solution of food safety & source-tracing for you.



Related products:

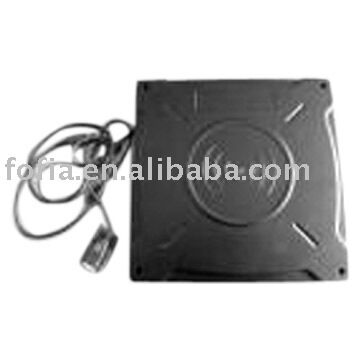

PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature 1



ICAR Website screenshot:

PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature 2



Company Information

Wuxi Fofia Technology Co., Ltd is a leading supplier of animal identification products in Asian and Pacific area. We are a professional manufacturer with 3000 square meters workshop, 100 workers and 13 years’ experience. The products are RoHs, CE certificated. We are located in Wuxi, a beautiful city about one hour reach Shanghai port. This is why we can supply top-quality products and the first-class service to every valued customer.



PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature 3

PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature 4

Our certificate:



 PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature 5PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature 6PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature 7PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature 8

 Overseas Exhibition:

PVC 1342khz FDXB Middle Range Distance Eartag Cattle RFID Reader Compatible with Support Card Proximity Cards Feature 9



FAQ



Q1. Are you a factory or trading company?



We are a professional manufacturer with 3000 square meters workshop, 100 workers and 13 years’ experience.

We are located in Wuxi, a beautiful city about one hour reach Shanghai port. Welcome to visit our factory.



Q2. Are your products the lowest price?



We take the quality into consideration prior. The price is based on the quality level and the order quantity. Discount is available from us if the order is big. As from a manufacturer, you’ve got the best price other than trading company.



Q3. All products have a warranty?

 Yes, we supply 1 to 5 years warranty for our products.



Q4. What is the transportation?

 Mainly by Express, we have good discount with FedEx, DHL and TNT.  You can also appoint your own forwarder.



Q5. If the goods is damaged in transit, how to do?

We use stable package, the possibility of the goods damaged during the shipping is very small. If it happens, we will ask the courier company to be responsible for it and pay you the loss.



Q6. Can we customize package pouch of the microchip with our logo, etc.?

Yes, we support OEM, all the color, logo and package can be customized.
