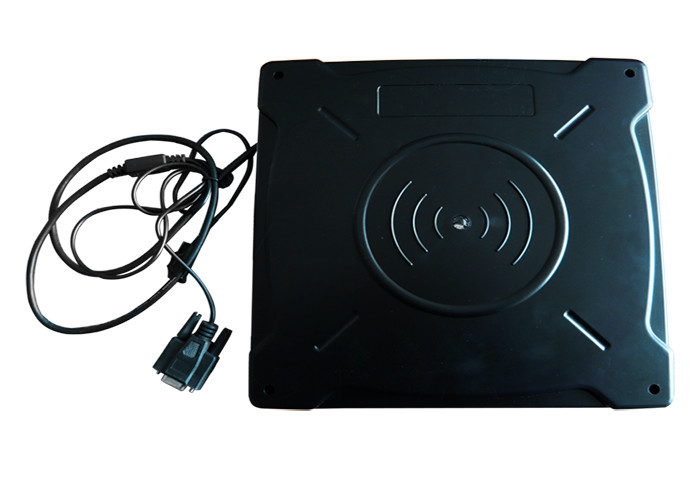

134.2khz Frequency RFID Panel Reader For Long Distance Animal Tag

134.2khz Frequency RFID Panel Reader For Long Distance Animal Tag

    • 134.2khz Frequency RFID Panel Reader For Long Distance Animal Tag
  • 134.2khz Frequency RFID Panel Reader For Long Distance Animal Tag

    Product Details:

    Place of Origin: Wuxi, China
    Brand Name: FOFIA
    Certification: CE
    Model Number: RLF102A

    Payment & Shipping Terms:

    Packaging Details: Carton box
    Delivery Time: 3 days after the payment
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Contact Now
    Detailed Product Description
    Reading Standard: ISO11784/5 FDX-B Standard 134.2khz Operating Voltage: Vcc=12V
    Electric Current: 360mA (12V) Dimensions: 260 (length) * 260 (height) *35 (thickness) Mm
    High Light:

    rfid chip reader

    ,

    animal rfid reader

    RLF02A is a 134.2KHz RFID long-distance reader which is specially designed for reading the animal ID tags with ISO11784/ISO11785 Standard. After reading the tag, it can directly output the information to the PC by format of RS232. It is usually used at the livestock’s’ passages and enclosures to do the work like automatic feeding, weighing, milking, butchering and to do the automatic identification about the tags during the breeding process.



    PIN NAME I/O SYMBLE MIN TYP MAX DESCRIOTION
    Red VCC I VCC 10.5V 12V 13.5V Power
    Black GND I VSS - - - Power
    Yellow PROGRAM1 I

    Vi-H

    Vi-L

    Vcc-0.2V

    -

    Vcc

    GND

    Vcc+0.2V

    Vss+0.2V

    Select mode
    Purple PROGRAM2 I

    Vi-H

    Vi-L

    Vcc-0.2V

    -

    Vcc

    GND

    Vcc+0.2V

    Vss+0.2V

    Select mode
    Grey - - - - - - -
    Green - - - - - - -
    Brown - - - - - - -
    White - - - - - - -
    Blue RS232 O     ±5V ±8V RS232 output
    Orange For Customer I

    Vi-H

    Vi-L

    Vcc-0.2V

    -

    Vcc

    GND

    Vcc+0.2V

    Vss+0.2V

    Connected GND to light blue LED



    All-function Mode
    ① Connections: connect the yellow and the blue,connect the purple and the red
    ② Card No.: 999000305434182(Hexadecimal: 3E70012348E46H)
    ③ Output Example: 0236344538343332313030374533303031303030303030303030300BF403



    Company Information:
